SV-1 /3K
High Speed Servo Filler with integrated 3K Doser and Static Mixer

Fischbach SV-1 / 3K: up to 50 cartridges per minute.

Features

  • Unit for filling, closing and marking of Cartridges similar to the type Fi-E/ED-310.

  • Empty cartridges are fed from ground-level magazine, holding approx. 800 cartridges (310 ml) Fischbach E/ED-310 or similar.

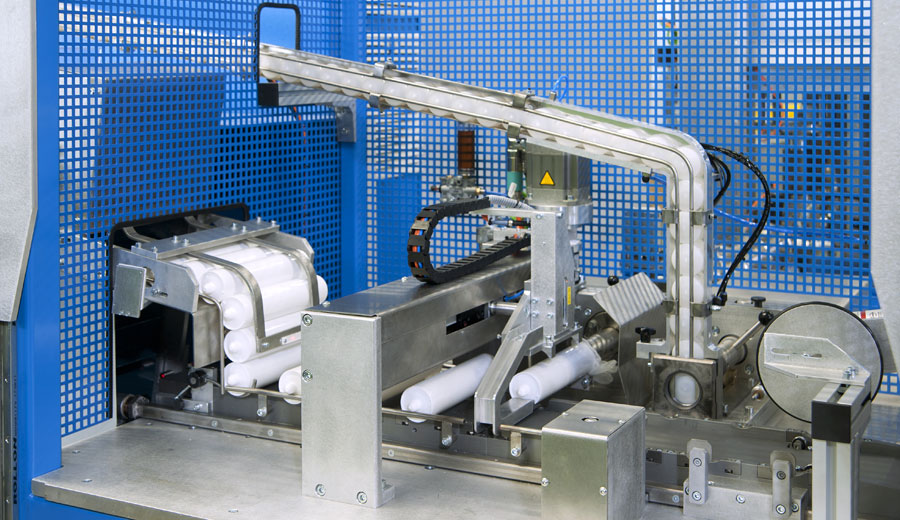

  • High operating speed with great precision due to the new servo-driven, easy to clean and low noise, rake conveyor.

  • ntegrated, precise, servo driven and controlled high-speed dosing units, Type ‘SVD+’ for one main-component and two additives (pigment, extender, etc.).

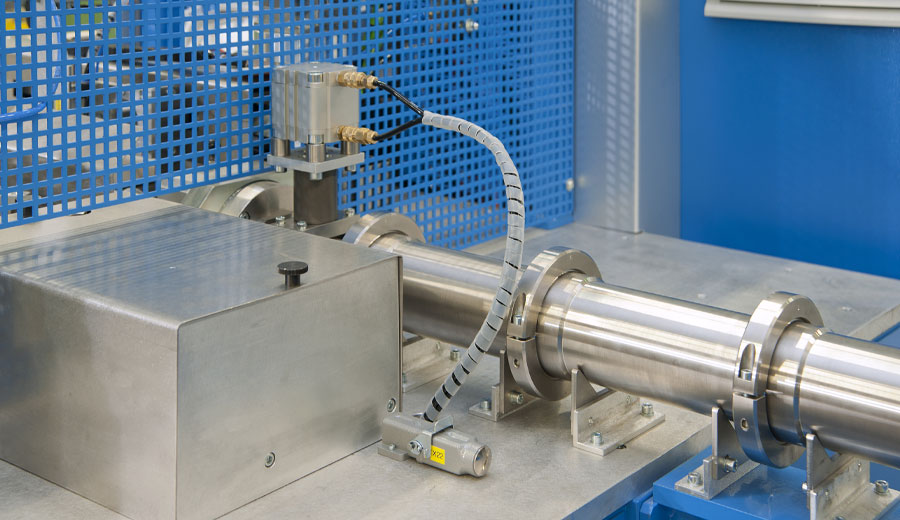

  • Static Mixer.

  • Special designed, heavy duty structured frame for dosing systems and mixer.

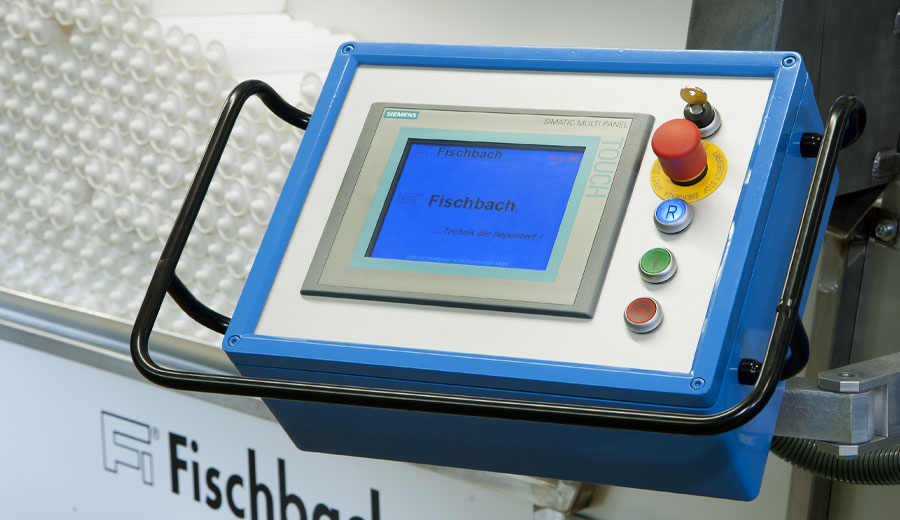

  • Complete system (filling machine and doser) are controlled via one Operator Interface (touch screen).

  • Plunger setting station with low noise parts conveyor.

  • Pulse controlled plunger lube system.

  • Freely programmable control with integrated diagnostics.

  • Rotation device for ink-jet printer (printer not included).

Options

  • Also available in 5K or 7K configuration.

  • Case Packer Fi-CH 100 and Palletizer Fi-PA, to create a fully automated, high performance line.

Technical Data

Type of Machine:

Single Head Cartridge Filling and Closing machines SV-1 with integrated 3K Doser and Static Mixer

Output:

Up to 50 cartridges per minute at 310 ml depending on the viscosity of the material filled

Dosing:

Volumetric

Dosing Range:

240 ml to 350 ml (base component)

Connecting height at Product Infeed:

1000 mm (+/- 50 mm)

Voltage:

3 x 400 V, 50 Hz or as requested

Control:

Siemens Simotion

Compressed Air:

5 bar minimum (75 psi.)

Air consumption:

about 15 Nm³/h

Weight:

2.3 tons
