SV-1

Automatic filling, closing and marking of 60 cartridges per minute with a single filling head.

Features

  • Precise, servo controlled volume dosing. Superior dosing accuracy at various viscosities.
  • Five axis SERVO operation allows adaptability to the widest variety of sealants and adhesives.

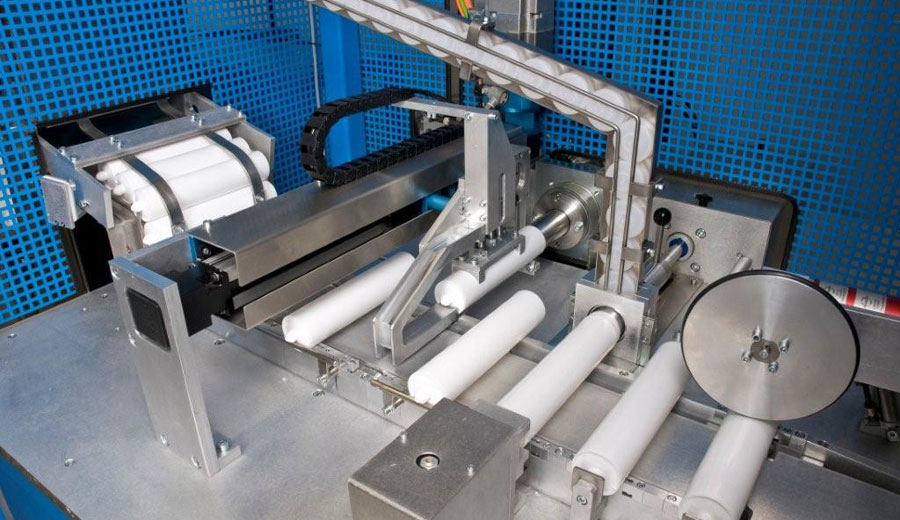

  • Superior process reliability at high operating speeds due to vacuum supported cartridge transport system.
  • Horizontal, closed loop fill sequence provides high speed air-free fill.
  • Filling plastic, aluminum or cardboard cartridges with or without nozzle.
  • Cartridges fed from ground-level magazine holding 500 or 1000 standard cartridges.

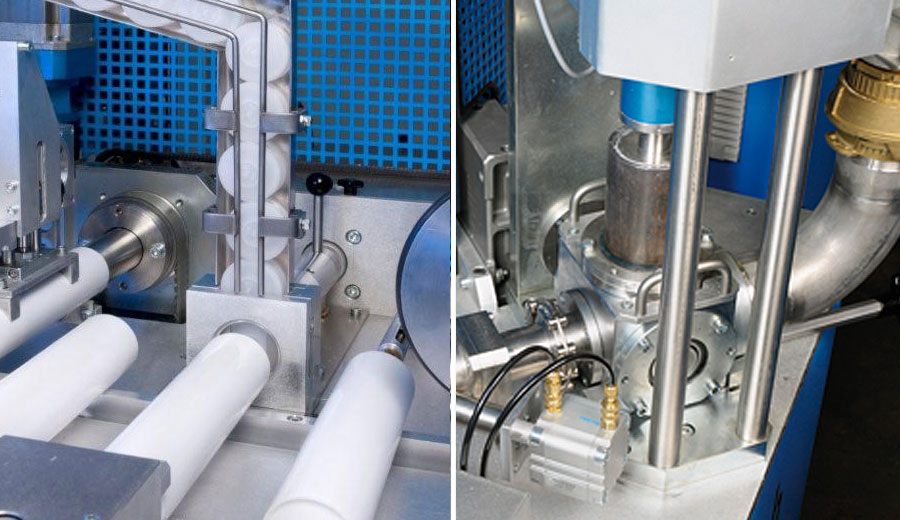

  • Linear sensor controlled plunger insertion for 100% accurate positioning.
  • Quick release plunger station to aid in cleaning, maintenance and changeover.
  • Metering chain plunger sorter ensures consistent reliable performance for all plunger types.

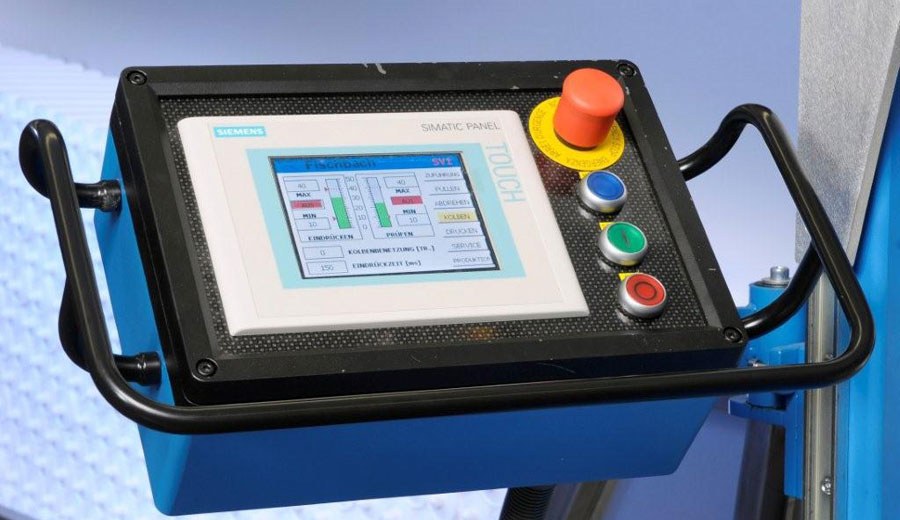

  • Advanced, touch screen operator interface for fast and easy access to all machine functions.
  • One-piece sliding doors allow efficient cleaning and maintenance.

Options

  • Fischbach MultiMix, for blending a base and additives, can be integrated.
  • Case Packer Fi-CH 100 and Palletizer Fi-PA, To create a fully automated, high performance line.

Technical Data

Type of Machine:

Single Head Cartridge Filling and Closing machines SV-1

Output:

60 cartridges per minute at 310 ml

Dosing:

Volumetric

Dosing Range:

240 ml to 500 ml

Connecting height at Product Infeed:

1000 mm or variable through optional height adjustment

Voltage:

3 x 400 V, 50 Hz or as requested

Control:

Siemens Simotion D

Power:

16 KW/ 32 Amps

Air Pressure:

5 bar Minimum

Air Consumption:

50 NL per minute

Weight:

1.5 tons

TECHNICAL HIGHLIGHTS
