Fi-CH
Fully Automatic Cartridge Case Packer

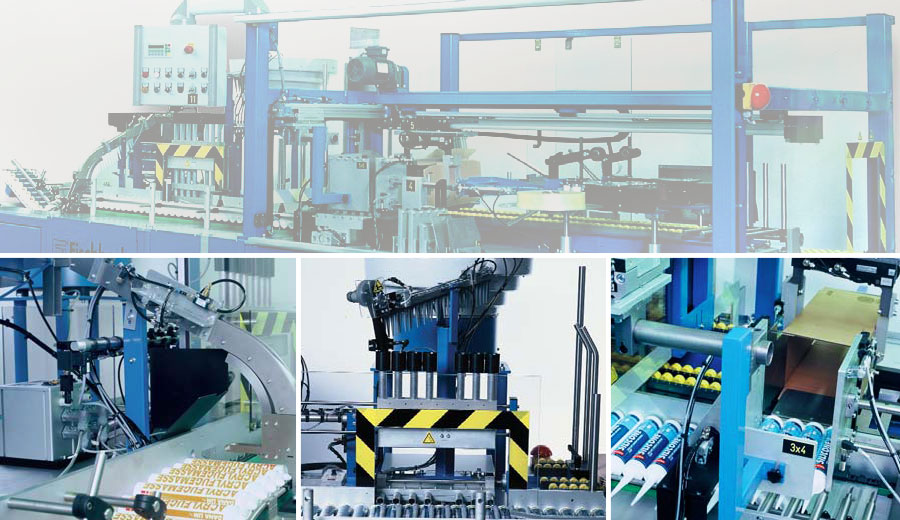

Fischbach Cartridge Case Packer Fi-CH: Up to 80 cartridges per minute, fully automatically accessorized and packed.

Features

  • Packages all kinds of plastic, aluminum or cardboard cartridges in one or two-piece version.
  • The overhead ‘gripper carriage’ supports the cardboard box during filling and throughout its way along the taping units. This guarantees 100% stability of the packing process with less sensitivity to box variances.
  • The compact modular design enables the machine to be optimally adapted to customer’s individual packaging requirements, while taking up a minimum of space.
  • Accessorizing with clip nozzles and adding of standard nozzles in a fully integrated, automatic operating cycle.
  • Well designed system for easily adjusted case formats – ‘quick and simple’ – change of format accomplished within less than five minutes.
  • With a packaging performance rate of 80 cartridges per minute the Fi-CH packer is the ideal supplement to any filling line.
  • Trouble-free operation due to latest process control and operater interface.
  • Superior safety devices in compliance with European CE-Standard.

Technical Data

Output:

Up to 80 cartriges per minute (depending on the format of the carton)

Types of cartridges:

All standard cartridges

Packaging formats:

2×3, 2×4, 2×5, 2×6, 3×4, 3×5, 3×6, 4×4, 4×5, 4×6, 5×4, 5×5 and 5×6 cartridges per carton

Nozzle Accessorizing:

1. Automatic clip nozzle stations (rate: 65 nozzles per minute)
2. Fully automatic adding of standard nozzles to the carton

Sealing of carton:

Integrated in the packer

Weight:

1.400 kg

Voltage:

3x400V, 50 Hz or as requested

Current:

1,6 KW

Fuses:

10 ampere

Prozess-Control:

Siemens PLC

Air Pressure:

6 bar minimum (90 psi.)

Air Consumption:

820 NL per minute
