HS-1 Light
Fully Automatic Machines

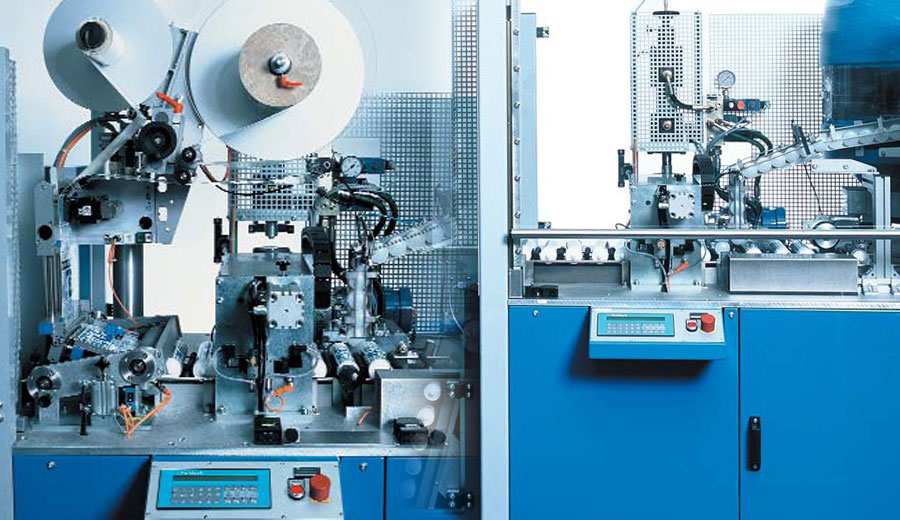

Fischbach One Station Filler HS-1 Light: Fully automatic filling, plunger insertion and marking of up to 28 cartridges per minute.

Features

  • Processing plastic, aluminium or cardboard cartridges with or without nozzle.

  • Cartridges fed from ground-level magazine holding 500 standard cartridges.

  • Fast operating speed with high precision due to a dirt resistant and easy-to-clean, servo controlled chain conveyor.

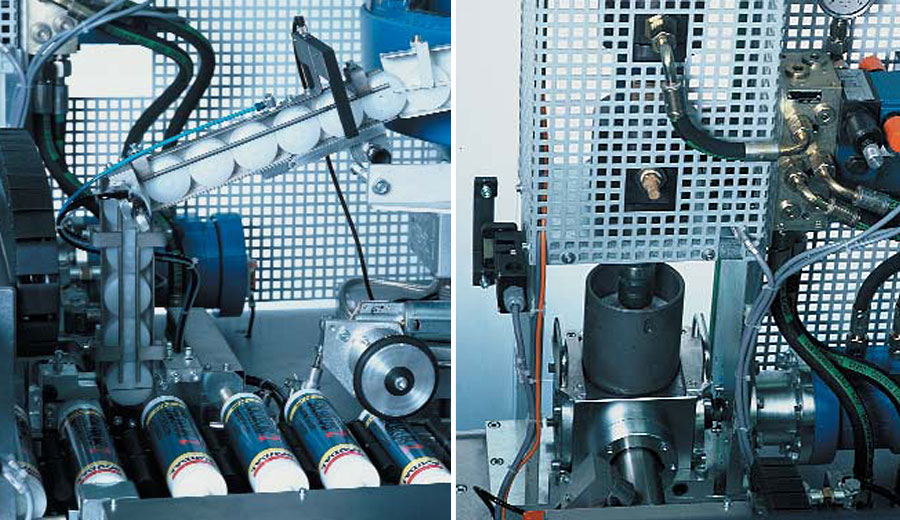

  • Filling station with sled system for uninterrupted processing of thin-walled or slightly oval cartridges.

  • Precise, pneumatically driven volume dosing system guarantees +/- 0.5g dosing accuracy per cartridge at various viscosities.

  • Optimized, dome-shaped material cut-off guarantees air free plunger insertion.

  • Plunger insertion can be operated with or without a wire venting system. Sensors are positioned to check plunger insertion, plunger position, over and under travel of the plunger.

  • All workstations and machine units are easily accessible. One-piece sliding doors at the front and at the backside of the machine allow cleaning and maintenance to be fast and easy.

  • All workstations and machine functions are easily accessible. One-piece sliding doors at the front and at the back of the machine allow cleaning and maintenance to be fast and easy.

  • Advanced technology operator interface gives fast and easy access to all machine functions.

  • Superior safety devises in compliance with European CE Standard.

Technical Data

Type of Machine:

Cartridge Filling machine HS – 1 Light

Output:

28 cartridges per minute at 310 ml depending on the viscosity of the material filled

Dosing:

pneumatic

Dosing Range:

240 ml to 350 ml

Connecting height at Product Infeed:

1000 mm

Voltage:

EU 3 x 400 V / 50 Hz, USA 3x 480 V / 60 Hz or as requested

Control:

SPS / Siemens S7 – 1200

Power:

3 KW / 12 Ampere

Air Pressure:

6 bar minimum (87 psi)

Weight:

1.000 kg
