Safe
Semi Automatic Machine

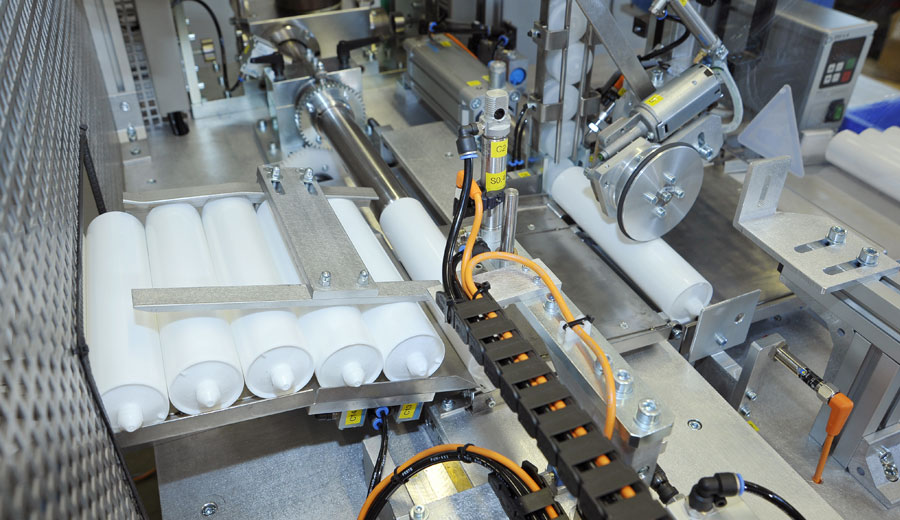

Semi Automatic Cartridge Filling and Plunger Setting System: A cost effective machine for up to 28 cartridges per minute.

Features

  • Processes plastic, aluminium or fiber cartridges; with or without integrated nozzle.

  • Supports very short run length due to easy and quick exchangeability of all wetted parts.

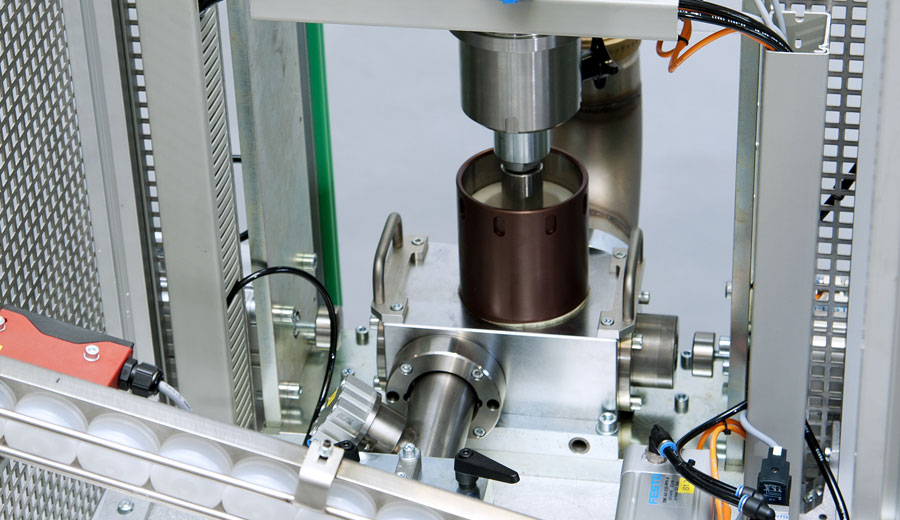

  • Filling station with shuttle system for reliable filling of thin-walled or slightly oval cartridges.

  • Highly precise, pneumatically driven volume dosing system guarantees +/- 0.5g dosing accuracy per cartridge at various viscosities.

  • Optimized spinning wire material cut off facilitates plunger insertion without air pockets.

  • Plungers can be inserted with or without the support of venting wires.

  • All machine components are easily accessible for cleaning and mainte nance.

  • All safety devices are in compliance with the European CE Standard.

Technical Data

Type of Machine:

Cartridge Filling and Closing machines SAFE

Output:

28 cartridges per minute à 310 ml

Dosing:

Dosing

Dosing Range:

240 ml to 500 ml

Connecting height at Product Infeed:

1000 mm or variable through optional height adjustment

Voltage:

230 V / 400 V, 50 Hz / 60 Hz

Control:

PLC

Air Pressure:

6 bar minimum (87 psi.)

Air Consumption:

450 NL per minute at 6 bar

Weight:

270 kg
