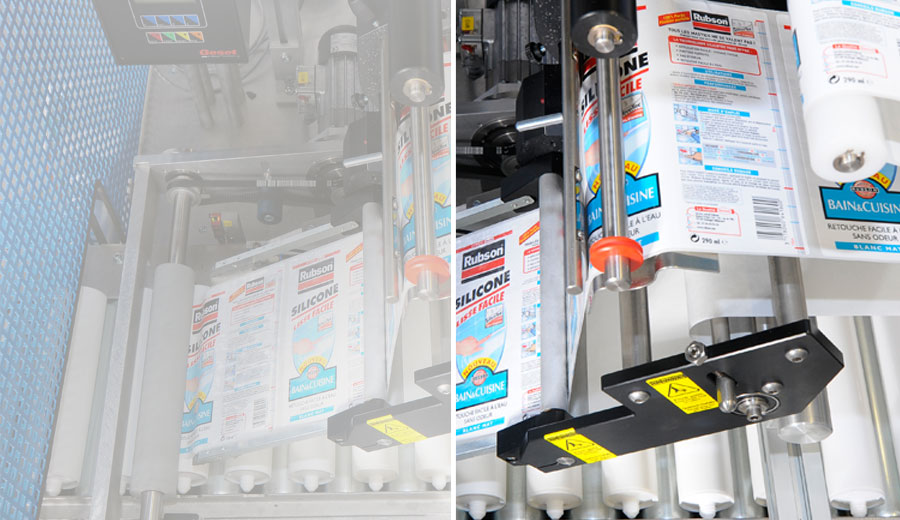

ET-60
Automatic Cartridge Labeling System

Integrated in Fischbach Filling Machines or as Stand Alone System

Features

  • Available with or without integrated TT- Printer module.

  • Supports high changeover frequency due to easy and quick label load mechanism.

  • Laser or mechanical sensor for cartridge indexing guarantees the highest level of accuracy and repeatability.

  • Optimized cartridge spinning drive for trouble free operation with all types of standard cartridges.

  • Superior safety devices in compliance with the European CE Standard.

  • Labeling in 3 different ways:

    1. Full size label (wrap around)

    2. Two half size labels (front and back)

    3. Bar code label, in-line printed by TT-Printer Module, placed in relation to cartridge index notch

Technical Data

Indexing Precision:

+/- 2 mm

Label Gap Requiered

2 mm

PLC:

Siemens S7

Thruput:

60 cartridges per minute

Dimensions (L x W x H):

ca. 1.600 mm x 800 mm x 1.500 mm

Label Specifications:

Core Diameter – 76mm/100 mm
Spool Diameter – 280 mm
Spacer Distance – min. 3 mm
